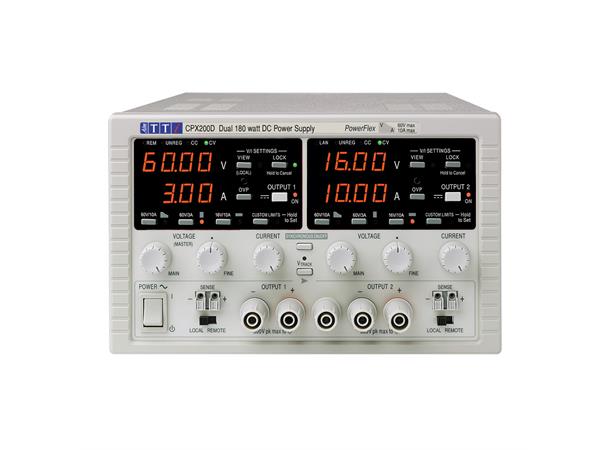

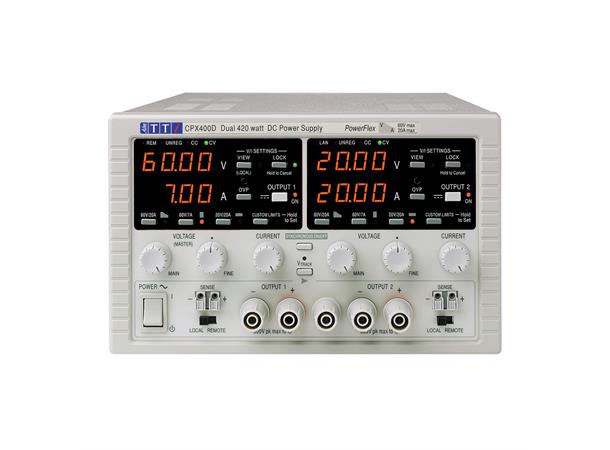

AimTTi CPX series Bench/System/ATE Programmable DC Power Supply Single or Dual Outputs, 360 to 840 watts, with or without Remote Interfaces
As technology has changed, many products have moved from analog controls to digital ones. Although digital controls suit many instruments, they do not necessarily suit a bench power supply. Customer research shows that many users prefer the speed and simplicity of conventional analog controls for setting voltage and current. Digital controls may offer greater precision, but often at the expense of ease-of-use. With this in mind, the CPX400 series retains the true analog controls of its predecessor. The settings of traditional analog potentiometers can drift over time. More importantly, the settings can be changed accidentally with potentially serious consequences. The CPX series now incorporates S-Lock. One press of the Lock button transfers control of voltage and current from the analog controls to internal digital circuitry. This offers not just complete security, but exceptional stability as well with each setting controlled by an instrumentation quality DAC.
- PowerFlex design gives variable voltage and current combinations within a maximum power range
- Up to 60 volts and up to 20 amps
- 180 watts or 420 watts maximum per output
- Isolated outputs can be wired in series or parallel
- Constant voltage or constant current operation
- Settings Locking (S-Lock)
- PowerFlex or fixed-range operation
- Variable OVP trips
- Selectable remote sense terminals
- Compact quarter or half rack 3U case size

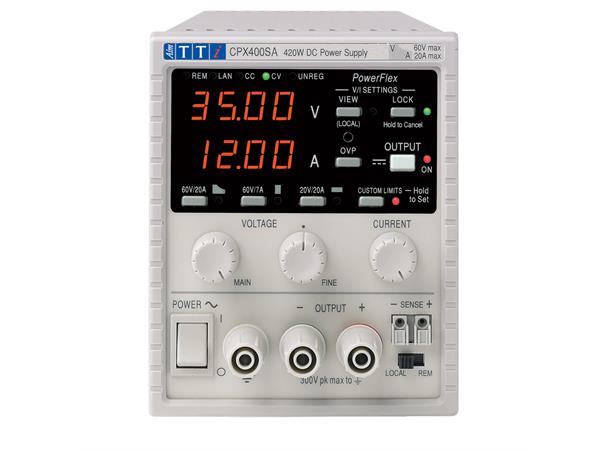

- Isolated analogue remote control (CPX400SA only)
- RS232, USB & LXI compliant LAN (P models only)
- GPIB Option (P models only)
