These excellent and cost-effective broadband antennas, for radial isotropic measurements from 150 MHz to 18 GHz, cover most RF sources such as LTE, GSM, UMTS, WLAN, etc.

The new OmniLOG PRO series consists of an ultra-wideband and cost-effective receive antenna (1 W [CW]) on the one hand, and a 100 W high-power transmit & receive antenna (100 W [CW]) on the other.)
Thus, these broadband antennas are excellently suited for radial isotropic measurements, interference search or frequency monitoring, if necessary including countermeasures in conference rooms. Depending on the type, they cover all RF sources from FM to K-band (for example, radio and TV, mobile radio, DECT, Bluetooth and WLAN, etc.).

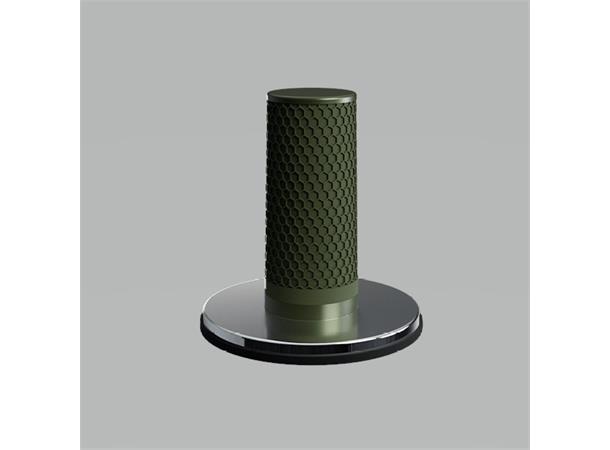

Each OmniLOG PRO is equipped with a high-tech antenna housing suitable for outdoor use (IP65 certified) as protection against environmental influences. The magnetic antenna base allows temporary fixed installation, for example on the car roof. The antenna passes rigorous testing in our laboratories before shipment.

Made in Germany:
All broadband antennas are designed, individually manufactured and calibrated at Aaronia in Germany. This guarantees the highest quality standards, through which Aaronia can offer every customer a full 2 year warranty on all EMC antennas.

Comprehensive calibration data:
The complete calibration data (50 MHz steps) can be downloaded. This allows a highly accurate measurement with any spectrum analyzer.
