Aaronia HyperLOG EMI series 20MHz - 6GHz

Aaronia HyperLOG EMI series

20MHz - 6GHz

Varenr: HyperLOG EMI

Ultimate EMC/EMI pre-compliance test antennas for the pro user. Unmatched ultra high accuracy. Very high gain over the full frequency range. Meets latest EMI/EMC standards up to 6GHz.

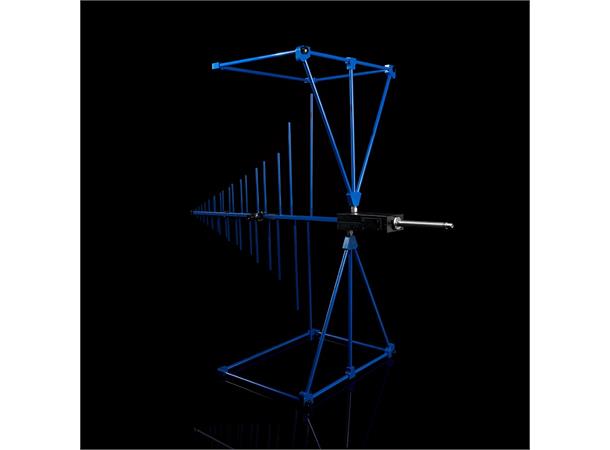

Combines the advantages of biconical antennas and those of log periodic antennas in a single high end EMC/EMI antenna. Offer an extremely high accuracy of 0,3 dB over the full specified frequency range and therefore can even be used as reference antenna.

By using the HyperLOG EMI antennas, the common EMI and EMC measurement error-rates, which show up by switching between different test antennas, are avoided. This is because you have only to use one antenna for the complete frequency range instead of two ore more antennas. This saves significant costs since the measuring time is reduced drastically. The HyperLOG EMI series can also be used as a powerful broadcasting antenna with up to 310 watts. These antennas are suitable even for immunity measurements, where very high field strengths are needed by more than 10 V/m.

Testing
Every HyperLOG EMI antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence.

Exhaustive Calibration data
All Aaronia HyperLOG EMC/EMI antennas include a complete high resolution (1MHz steps!) calibration data set with an unmatched number of calibration points (Certificate and download link to Excel file included).. This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.

Made in Germany
All Aaronia antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 2 years warranty for all EMC/EMI antennas.
