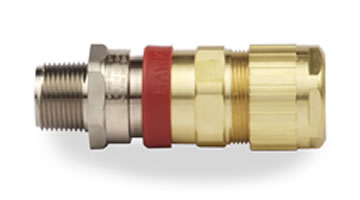

Exd/e Barrier 711

711
by Hawke

The 711 cable gland provides 2 independent seals and a compressable earthing cage for use with continuous corrugated aluminum, and interlocked steel Metal Clad MC and Teck type cables. The first is a flameproof barrier (compound) seal around each individual core, with an additional IP seal on the outer sheath. The cable gland is certified for Explosion Proof / IECEx and ATEX Approved Flameproof Exd / Increased Safety Exe and Restricted Breathing ExnR areas.

  • Provides 360° armour grounding which is fully inspectable.
  • Grounding device remains in contact with the cable when disassembled for inspection.
  • Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable.
  • Assembly of the cable gland/connector compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure.
  • Provides an outer deluge seal to prevent moisture ingress to the cable armour and enclosure.
  • Deluge seal is coloured red to indicate hazardous locations product.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer jacket.
