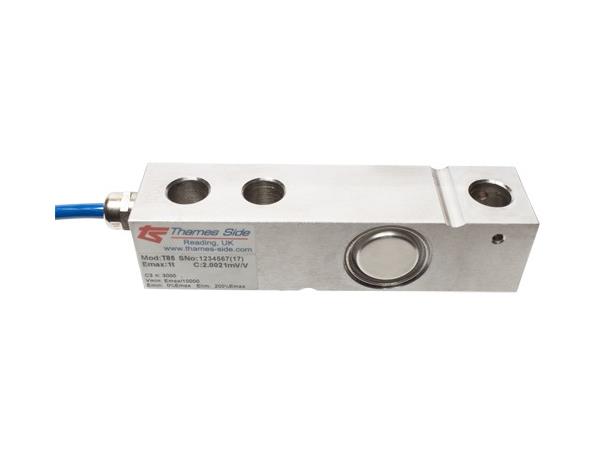

The T85-T stainless steel shear beam is a high accuracy load cell for industrial weighing applications, but primarily for platform scales due to its low height and blind loading hole, which introduces the load into the shear beam in the most optimum way. It has OIML C3 approval (which is ideal in legal-for-trade platforms) and it can withstand harsh working environments due to its fully welded and hermetically sealed design (IP68/IP69K).
To reduce corner correction (setup and installation time) to a minimum, the T85-T load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%.
The T85-T has ATEX approval for use in hazardous areas where an explosion risk exists. For gas zones 20, 21 and 22 it has ATEX certification that does not require the use of safety barriers.
This new T85-T load cell replaces the previous model 350Ti load cell.
Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K
Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
Calibrated in mV/V/Ohm
Wide operational temperature range: -30 °C to +70 °C
Options: ATEX approval, Parylene coating for the load cell when used in extremely harsh environments, as well as a version for high temperature use
