T60 Nickel plated steel S-type, 50kg IP67

T60 Nickel plated steel S-type, 50kg


Varenr: T60-50KG

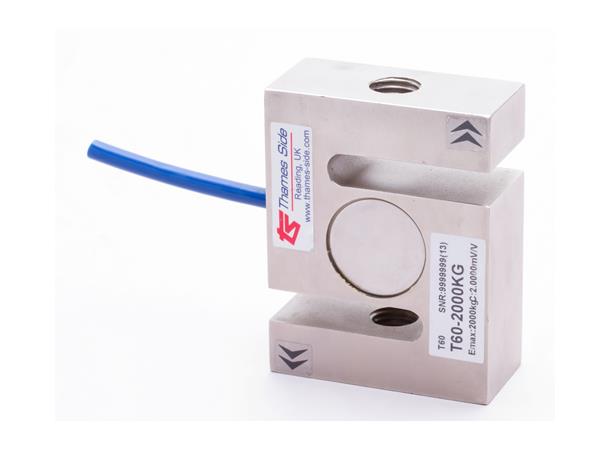

The T60 S-type (or S-beam) tension load cell is manufactured from high quality alloy steel and sealed to IP67.  Its low cost and wide capacity range of 50kg-6000kg make this model an extremely versatile solution to a range of different applications.  The durable polyurethane cable has a high resistance to impacts/cuts, chemicals and UV radiation.

Although normally used in tension, it can be used in compression or in a bi-directional (static) manner with suitable adapters in the right application.  It is not suitable for dynamic use through zero load.

For ease of attachment to the structure being weighed, for example a hanging hopper, a range of tension rod end bearings is available.

Key features:
Capacity range: 50kg-6000kg
High quality nickel plated alloy steel, corrosion resistant
Fully potted and sealed to IP67
2 mV/V sensitivity and 6-wire connection (with sense wires)
Can be used in tension or compression (not for through-zero dynamic use)
Optional high temperature version for use up to +150 °C
Polyurethane cable
3 year warranty
Option: zinc plated steel rod end bearings for attachment
