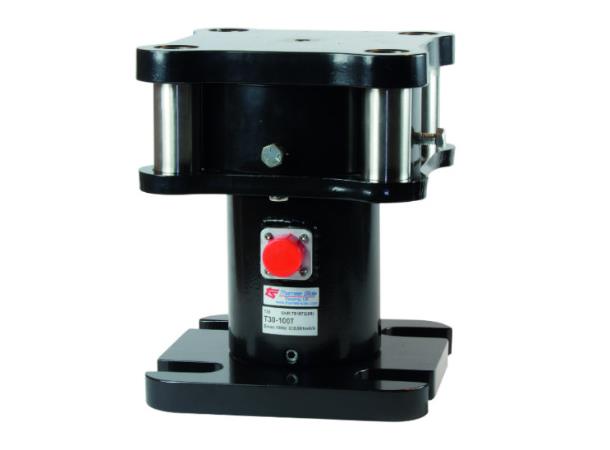

The T30 is a high accuracy compression load cell housed in an integral mounting accessory, which is ideal for general weighing of large tanks, silos and vessels, particularly in the cement, waste processing (waste-to-energy) and minerals industries.
The design ensures optimum performance and eliminates many traditional problems that occur during the installation of high capacity weighing systems. The T30 load cell and mounting assembly are supplied as a complete locked unit, ready to install.
The special design readily accommodates structural misalignment and horizontal movement that may occur during thermal expansion and contraction of the weighed structure. Lift-off protection is built into the design and can withstand forces of up to 20% of the load cell capacity, making the unit ideal for exposed installations subject to strong winds.
Simple, fast, low cost installation (1 piece design)
High accuracy load sensor
Tough, epoxy painted, self-aligning assembly
Sealed to IP67
Compensation for thermal expansion and contraction
Integral lift-off protection
Removable M12 cable connector for greater flexibility of installation
Wide operating temperature range
