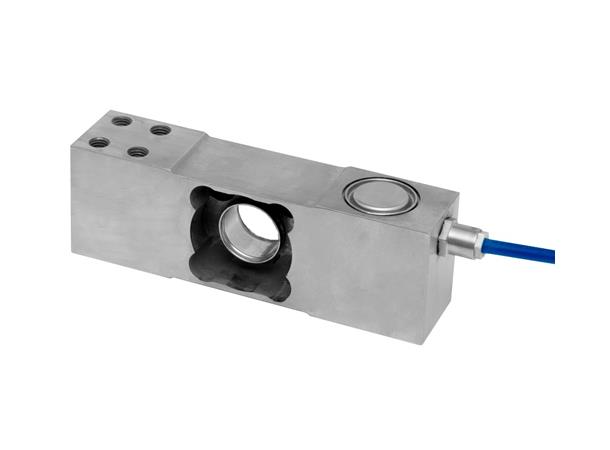

T12 St.steel load cell, 15kg OIML C3, IP68, IP69K

T12 St.steel load cell, 15kg

OIML C3, IP68, IP69K

Varenr: T12-15KG

The T12 single point platform load cell is manufactured from stainless steel and its design provides for high accuracy weight measurement, even with off-centre loads and in harsh environments.

Its hermetically sealed and fully welded construction, with protection class IP68/IP69K, is essential for use in applications involving regular wash-down at high temperatures and pressures, such as the food and pharmaceutical industries.

With OIML C3 approval (3000 divisions) and a screened 6-wire polyurethane cable this load cell offers high accuracy and insensitivity to electrical noise.

As an option, ATEX approval is available for use in hazardous areas where an explosion risk exists.  For gas zones 20, 21 and 22 the ATEX certification does not require the use of safety barriers.

Key features:
Capacity range: 15-400kg
High accuracy with off-centre loads
Stainless steel, fully welded and hermetically sealed, protected to IP68/IP69K
Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
Small sensitivity tolerance of ± 0.1 % mV/V as standard
600mm x 600mm, or 800mm x 800mm, max. platform size (with load cell placed centrally under platform)
Polyurethane cable
Option: ATEX approval
Optional high temperature version for use up to +150 °C
