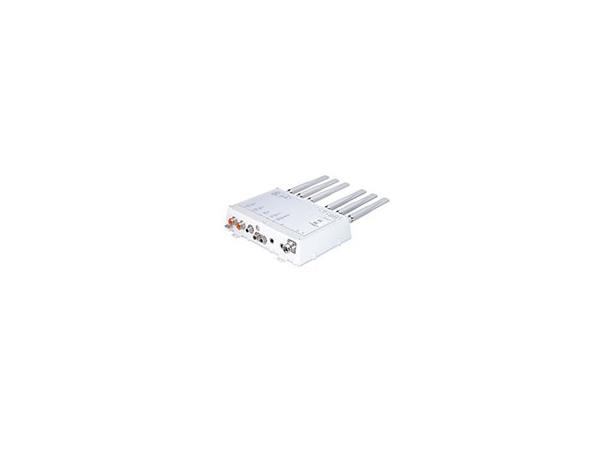

Hirschmann OpenBAT-F trådløs AP/klient

BAT-FEUWW9AKK99BO5T6T99PZH

Varenr: BAT-FEUWW9AKK99BO-02
Hirschmann OpenBAT-F trådløs AP/klient BAT-FEUWW9AKK99BO5T6T99PZH

Product description

DescriptionRugged wireless LAN access point and/or client for use in industrial environments. IP65/67 water and dust resistant, rugged metal housing deployment in the field.
Port type and quantityM12 - LAN combo port: 10/100/1000BASE-TX, 1000BASE-SX/LX; LAN port 10/100BASE-TX M12
Radio StandardIEEE802.11a/b/g/h/n WLAN interface as per IEEE802.11n, up to 450MBit/s gross bandwidth.
TypeBAT-FEUWW9AKK99BO5T6T99PZH09.12.5850
Order No.BAT-FEUWW9AKK99BO5T6T99PZH09.12.5850
Supported Radio Standards1st WLAN interface as per IEEE802.11n; 2nd WLAN interface as per IEEE802.11n

More Interfaces

EthernetM12 - LAN combo-port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Power supply/signaling contact1 x terminal block, 2-pin; 1 x terminal block, 2-pin
V.24 interface
  • Configuration interface (COM)
  • AT modem connection
  • For automatic P2P connections verified over V.24 (train carriage coupling)
  • Serial gateway for WLAN or virtual COM interface via WLAN
USB interface1 x M12 USB interface for connecting an ACA-USB-M12

Radio technology

Antenna connectorN socket, 3 x MiMo antenna connectors, 3 x MiMo antenna connectors
RangeDepends on type of antenna, frequency range and data rate. Use the BAT-Planner for planning your wireless network.
Frequency bandSupports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 - 5850 MHzSupports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 - 5850 MHz
Modulation22M0F7D (DSSS/OFDM) at 2.4 GHz20M0G7D (OFDM) at 5 GHz
EncryptionIEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.

Power requirements

Operating voltageVoltage Range 1: 60/120/250 VDC (48-320 VDC) / 110/230 VAC (90-265 VAC); Voltage Range 2: 60/120/250 VDC (48-320 VDC) / 110/230 VAC (90-265 VAC)
Current consumption17.5 W

Ambient conditions

Operating temperature-40 ºC ... 70 ºC
NoteTemperature of the surrounding air.
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF58 years (MIL-HDBK-217F)
Protective paint on PCBNo

Mechanical construction

Dimensions (W x H x D)311 mm x 219 mm x 75 mm
MountingWall mounting
Protection classIP65, IP67

Approvals

Basis StandardCE
Safety of information technology equipmentEN 60950-1
RadioRED-EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz), EN 301 489-1, EN 301 489-17

Scope of delivery and accessories

Scope of deliveryDevice, Installation user manual, CD/DVD with manual, V1 sealing cap for optical connection, Terminalkabel, 2 x Power supply plug, 2 x Dust protection cap for power supply connection, 5 x M12 cap, 2 x Cover cap for N connector, 4 x 50 Ohm terminators, 6 × 3-dBi dipole dual-band antennas.
Accessories to order separatelyExternal antennas; external surge protection; cables 2 m, 5 m, 15 m. Some countries does not allow all Antennas. For more information please have a look into the Hirschmann Antenna Guide; mast mount adapter
