Evolution
by Chalmit Lighting

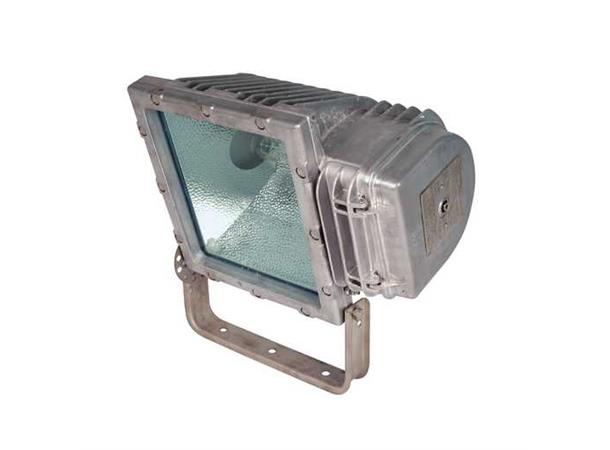

The Evolution is a highly efficient floodlight that combines Ex de protection with optimised utilisation of light through advanced reflector design. The Evolution concept has no exposed flamepaths making the luminaire effectively maintenance free. Access to the lamp and terminal chamber is achieved by the unscrewing of a single captive bolt.
- Installation in gas groups IIA, IIB and IIC.
- Easy and quick access for maintenance.
- Simple, rapid lamp replacement and flamepath inspection.
- Reduced maintenance due to no exposed flamepath.
- Exceptional photometric efficiency.
- Effective light distribution for many applications.
- Timed ignitor supplied as standard.
The Evolution is lightweight Aluminum alloy floodlight for use in Zone 1 and 21 hazardous areas. Click the 'Contact Us' link above to get in touch with us and discuss how the Evolution II range could work for you.
|
Type of protection
|
Ex d e (Flameproof, Increased Safety)
|
|
ATEX Classification
|
Group II Category 2 GD
|
|
Area Classification
|
Zone 1 and Zone 21 areas to EN 60079-10-1
and EN 60079-10-2 with installation to
EN 60079-14 Gas Groups IIA, IIB and IIC
|
|
Certificate
|
EC Type Examination Certificate BAS98ATEX2373 IECEx Certificate of Conformity IECExBAS12.0043
|
|
Coding
|
Ex II 2 GD Ex d e IIC
Refer to table for T rating and Ambient
|
|
Enclosure
|
Aluminium alloy LM6 to BS 1490 (AC44100)
All fastenings A4 stainless steel
Toughened glass window
|
|
Reflector
|
Wide beam, high purity anodised aluminium
|
|
Entry
|
2 x M20 cable entries
|
|
Termination
|
3 core 6mm² max. conductor with looping
|
|
Installation
|
Stirrup mounting bracket with aiming quadrant
|
|
Windage
|
0.159m² / 0.173m² (120V version)
|
|
Control Gear
|
Internal copper/iron with PFC correction capacitor
and timed ignitor
|
|
Relamping
|
Access via hinged end cover on release of single screw
|
|
Burning position
|
Universal for HID, +/-45° on horizontal plain for Tungsten-Halogen lamps
|
|
Ingress Protection
|
IP66/67 to EN 60529
|
|
Electrical Supply
|
220, 230, 240, 254V 50Hz HPS & Metal Halide 24V - 254V ac/dc linear Tungsten-Halogen, 110V - 254V single ended Tungsten-Halogen
|
|
Std. Cat No.
|
Wattage
|
Lamp
|
Lampholder
|
TClass (Gas)
|
T°C (Dust)
|
Ambient °C
|
Weight
|
|
EVOD/150/MS
|
150W
|
HPS and Metal Halide
|
E40
|
T4
T3
|
130
175
|
40
55
|
28kg
|
|
EVOD/250/MS
|
250W
|
HPS and Metal Halide
|
E40
|
T4
T3
|
130
175
|
40
55
|
28.5kg
|
|
EVOD/400/MS
|
400W
|
HPS and Metal Halide
|
E40
|
T3
|
175
|
55
|
28.5kg
|
|
EVOD/600/HS*
|
600W
|
HPS
|
E40
|
T3
|
195
|
35
|
25kg
|
|
EVOD/500/TH
|
500W
|
Single Ended T/Halogen
|
E40
|
T3
|
195
|
40
|
25kg
|
|
EVOD/500/TL
|
500W
|
Linear T/Halogen
|
E40
|
T3
|
195
|
55
|
25kg
|
*Ignitor only fitted. Remote gear box required (see Universal Box). For Pendant substitute EVPD for EVOD.
Options – Suffix to catalogue No.
|
/120
|
110-130V (Weight increase of +12kg)
(Extended end cover) HPS & Metal Halide only
|
|
/M25
|
M25 cable entries
|
|
/60
|
60Hz
|
|
/N
|
Narrow beam reflector
|
|
/M
|
Medium beam reflector
|
|
/P
|
PTFE coating
|
|
/LT
|
Low temperature version -50°C
(Gas groups IIA and IIB only)
|
