G-series Amplified Speaker IECex Multivoltage, Exd, surface mount

G-series Amplified Speaker IECex

Multivoltage, Exd, surface mount

Varenr: G-SPA-EXD

Global Series Signaling Platform – Amplified Speaker

Non-metallic design for low maintenance and corrosion resistance

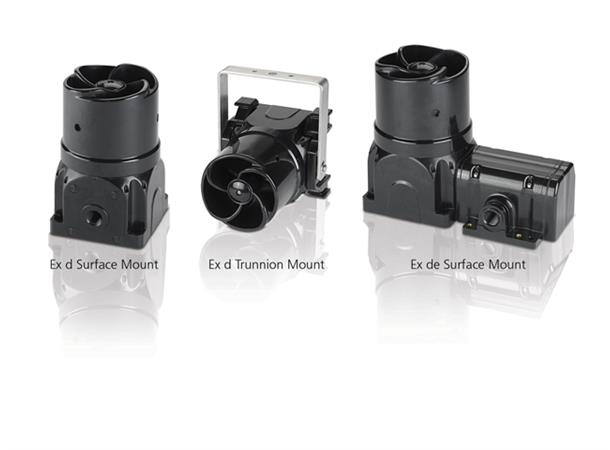

Federal Signal G-Series Amplified Speakers are designed for rugged industrial public address and general alarm applications. These models are available in explosion-proof "Ex d" versions and increased safety "Ex de" wiring box versions and are certified for gas Group IIC environments.

G-Series Amplified Speakers are capable of amplifying audio-level signals from either 0.8 Vrms or 2.8 Vrms systems and reproducing it at 15 Watt levels. G-Series Amplified Speakers work perfectly with ECHO Intercom systems, or with any application requiring audio amplification where ATEX or IECEx approval is required or desired.

The G-Series Amplified Speaker can be combined with all other G-Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing, are available.

Features:

316 stainless steel mounting U-Bracket (optional)

Non-metallic corrosion-resistant design

Gain control

Supports 3 operational voltages: 24VDC, 120VAC 50/60 Hz, and 230VAC 50/60 Hz

Two M20 entries standard on Exd models, three M20 entries standard on Exde models

IP66 enclosure

Zone 1, 21 Rated, IECEx, ATEX, Exd IIC and Exde IIC

Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow

Field customizable legend plates available
